PUSH PULL outer cable with inner sheath
PUSH PULL outer cable with inner sleeve
The PUSH PULL duct consists of an inner tube reinforced with metal wires and coated with a layer of PE, PP or PA.
In contrast to bowden type spiral ducts which transmit a tensile force. PUSH PULL is used for both compression and traction. Light and precise, PUSH PULL is reliable and resistant.

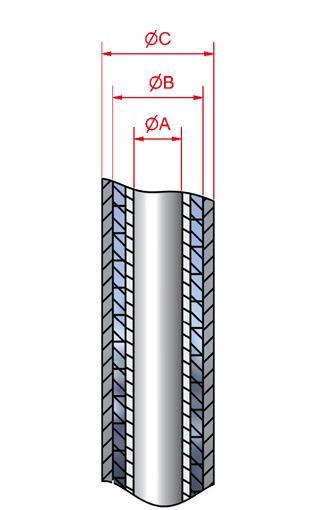

| A ± 0,1 mm | B ± 0,1 mm | C ± 0,1 mm | Weight Kg/1000m | Previous Ref. | New Ref. |
|---|---|---|---|---|---|
| 1,8 | 3,4 | 4,1 | 40,0 | CCZC50010 | SP000155 |
| 2,0 | 4,0 | 5,0 | 60,0 | CCZC50020 | SP000156 |
| 2,5 | 3,5 | 6,4 | 90,0 | CCZC50025 | SP000160 |
| 3,8 | 7,0 | 9,0 | 175,0 | CCZC50038 | SP000163 |
| 5,0 | 9,0 | 11,5 | 325,0 | SP000445 | |
| 8,5 | 12,0 | 14,0 | 415,0 | CCZC50050 |
Product advantages:
- Unlike bowden type spiral hoses which can only transmit a pulling action in one direction
- PUSH PULL hoses can be used in both tension and compression,
- For some high cycle applications, it is necessary to incorporate a thermoplastic POM coating to reduce friction between the jacket and the cable.
- Increases the service life of the wire rope
Areas of application :
Automotive industry
Aerospace industry
Special machine
Cycle industry
Applications :
Brake lining
Clutch cover
Angle gear sheath
Protective sheath
Reinforcement sleeve
Bicycle cover
Clutch cover
Seat adjustment sheath
Bowden sleeve
Welding wire guide sleeves
Lock sheath
